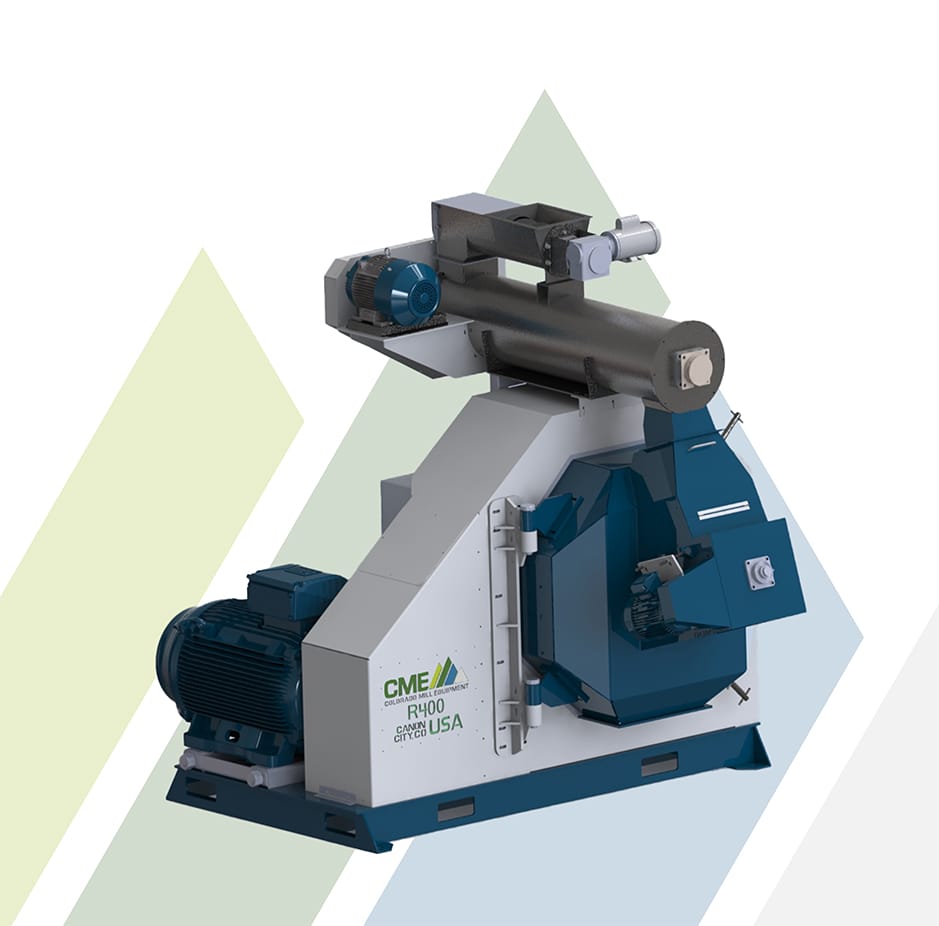

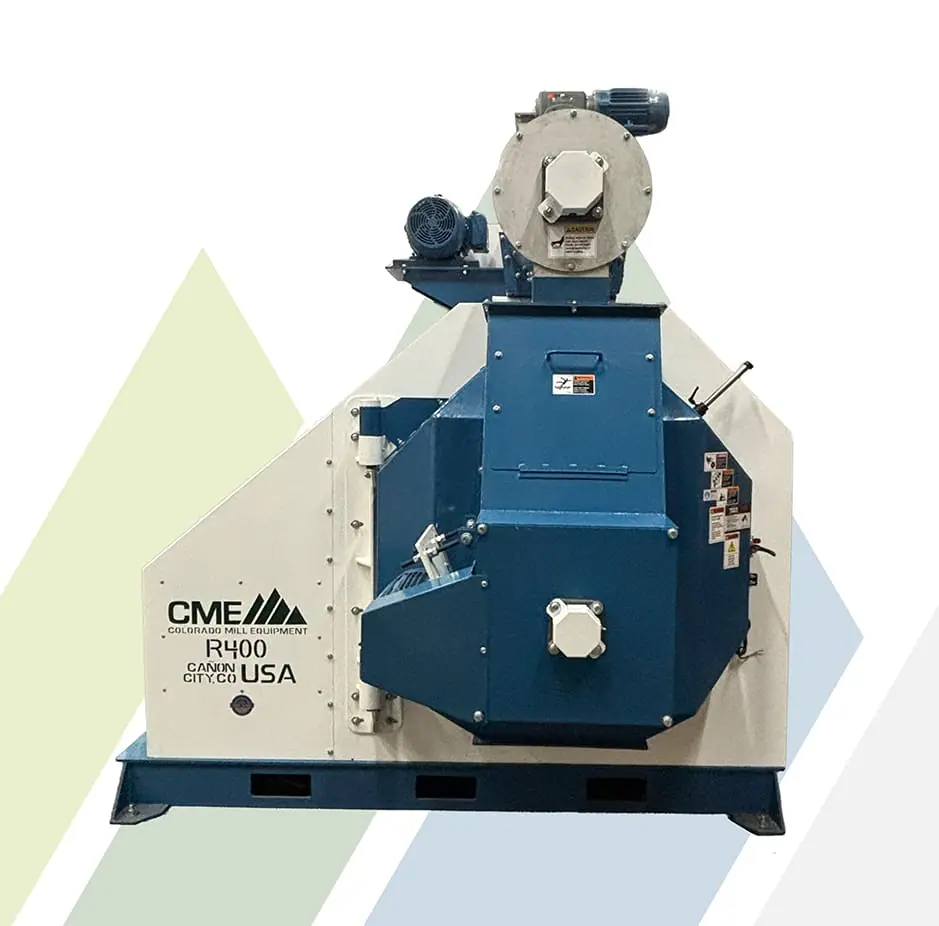

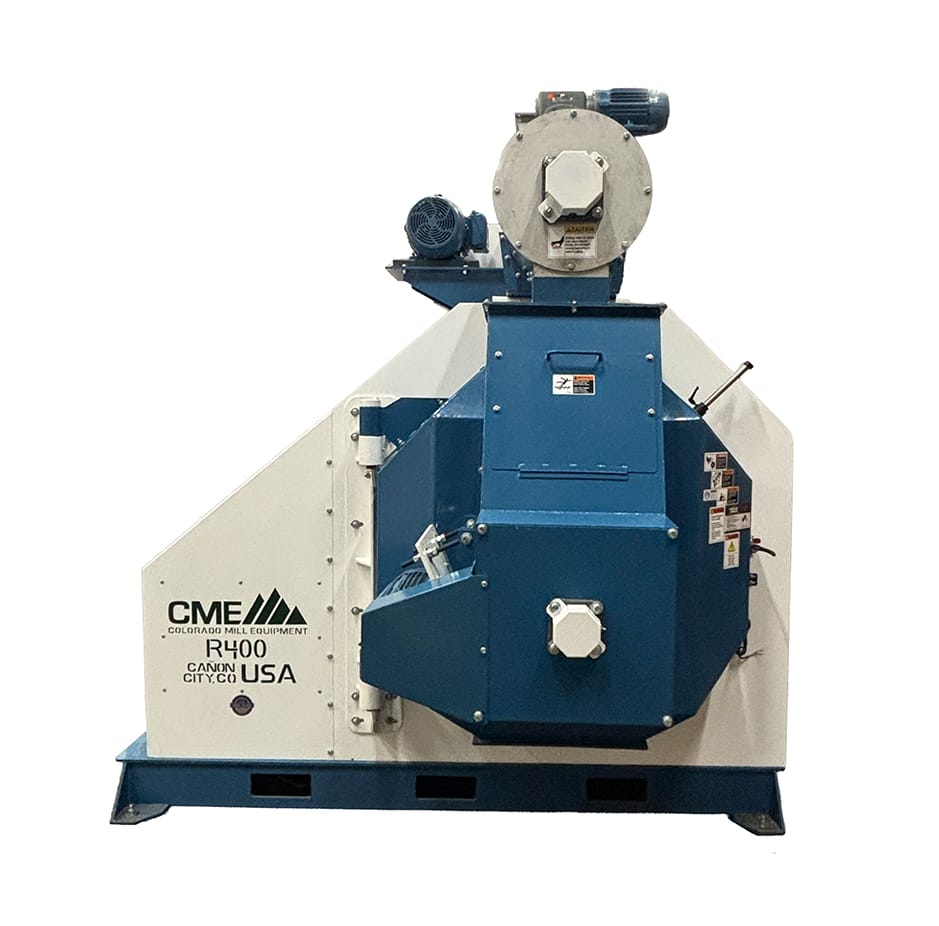

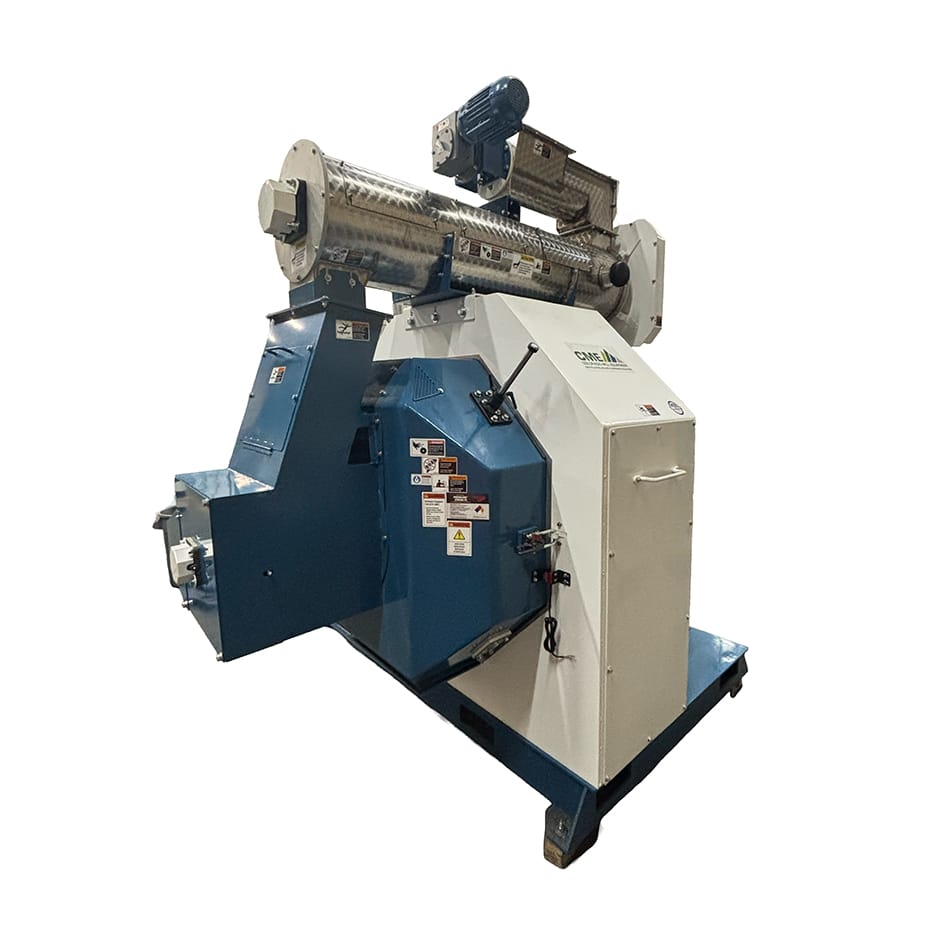

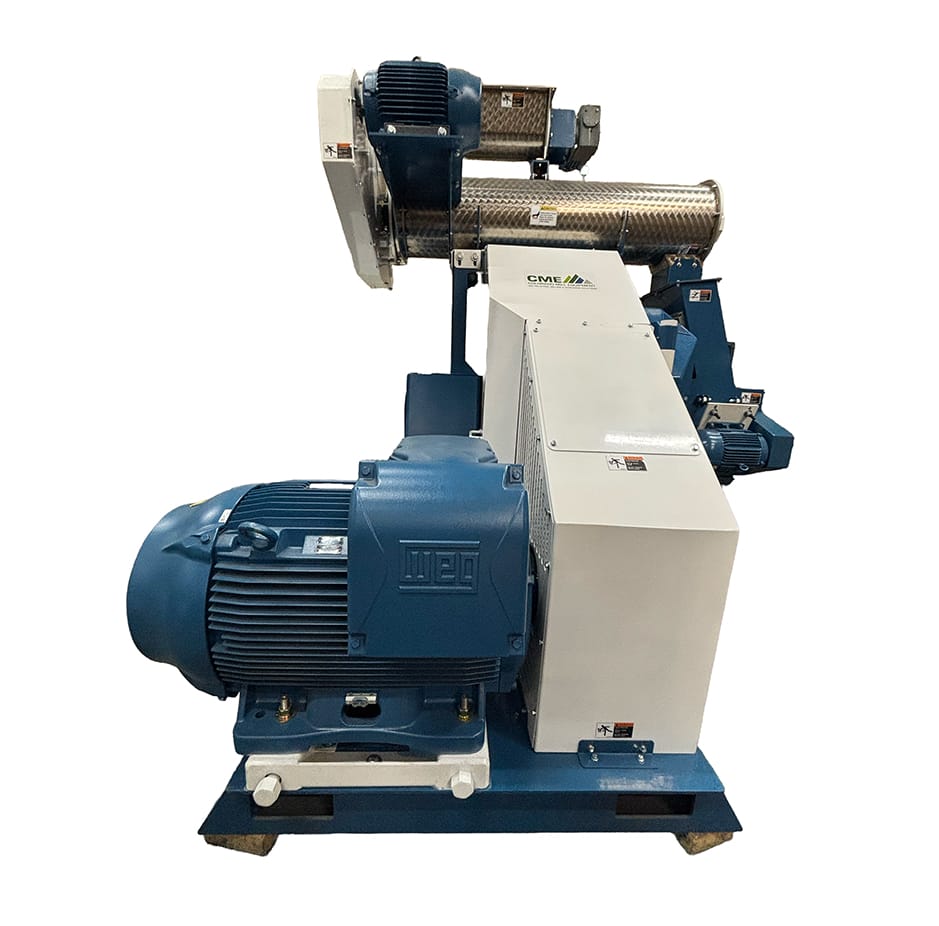

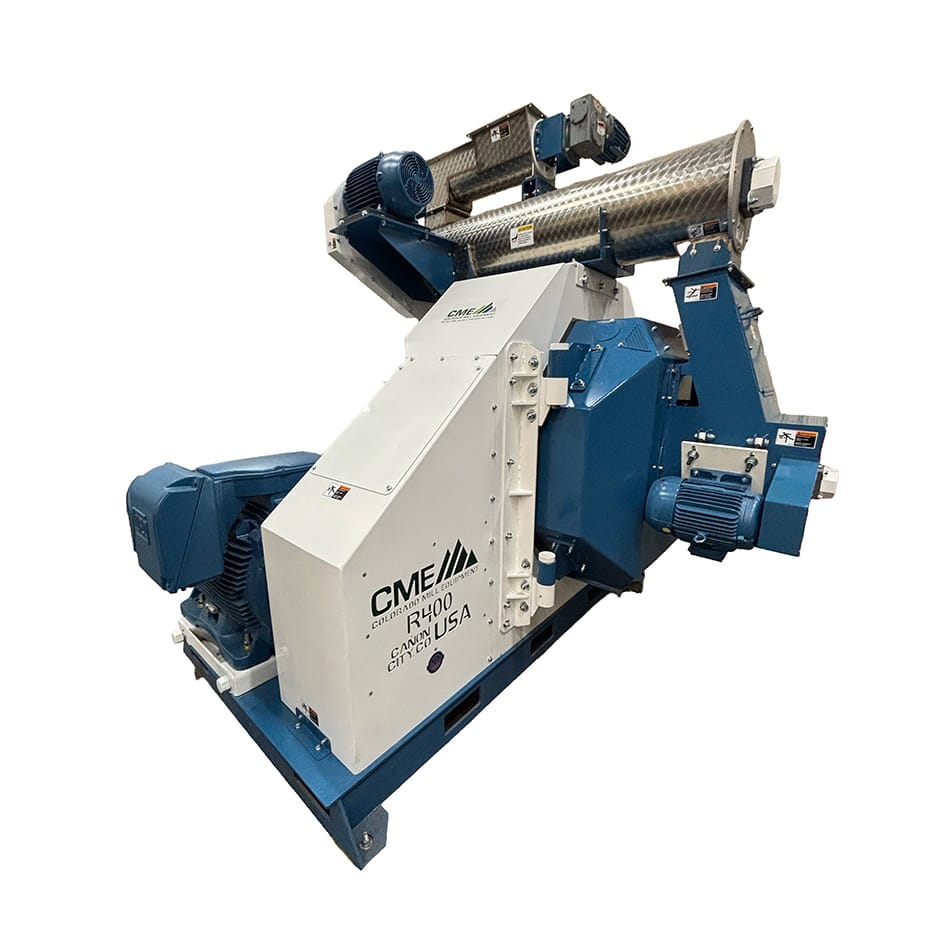

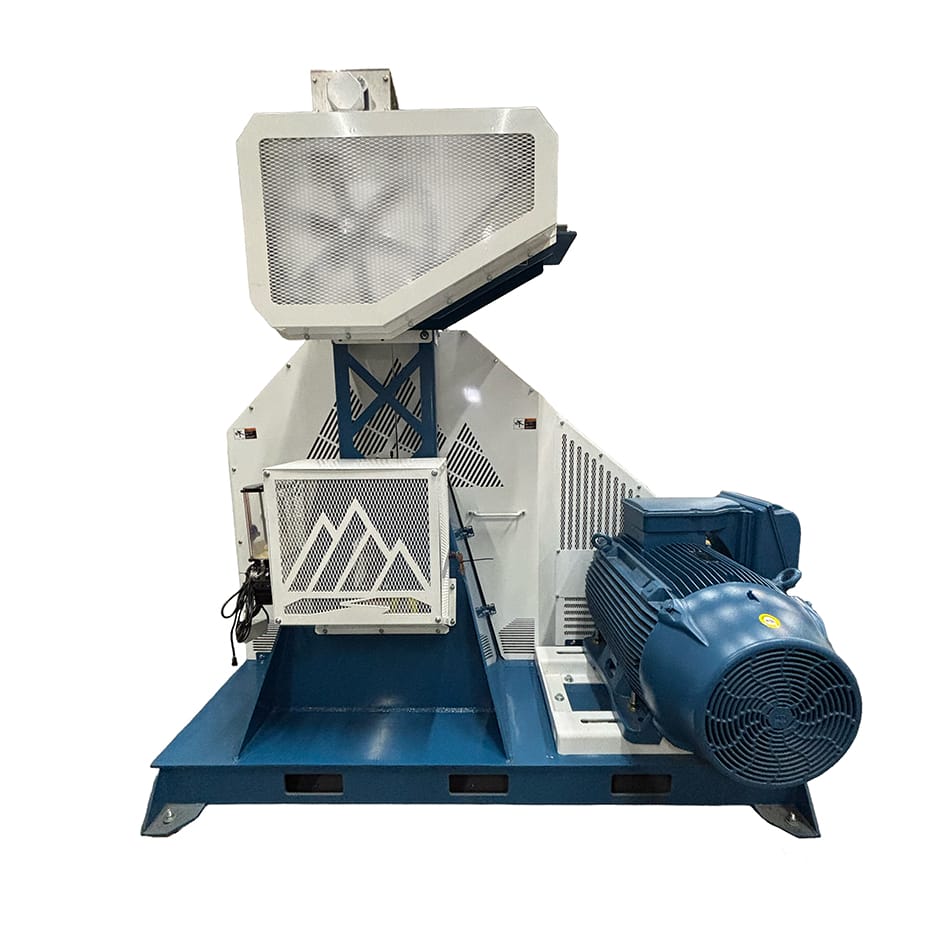

R400 Pellet Mill Machine
400 HP Motor
Call for Pricing
High-Capacity Pellet Production with the R400
The R400 Pellet Mill Machine from Colorado Mill Equipment’s Millennium Series is a powerful full-scale production unit designed with one of the highest horsepower-to-surface-area ratios in its class. Built for demanding pelleting operations, the R400 delivers reliable performance and high throughput across a range of materials.
Capable of producing 6,000 to 50,000 lbs of pellets per hour, depending on the raw material, the R400 is rated for applications including animal feed, fertilizer, and severe-duty production environments such as wood pellet manufacturing.
The R400 is part of CME’s complete line of pelletizing equipment designed for pilot, production, and high-capacity pellet manufacturing systems.
* Options shown in images and/or videos are sold separately and not included in price.
Motor
400 HP
Capacity/HR
6,000- 50,000 LBS
Die Inner Dia.
26″ Ring
Dimensions
110″ L, 130 W 120″ H
Weight
20,000- 22,000 LBS
- Industrial 400 HP, TEFC main drive motor
- New dies available: 1/8” to 3/4”
- Custom die sizes available upon request
- Safety guards on all pulleys
- Quick-change shear pin assembly
- Easy-adjust knife post to change pellet length
- Simple and reliable belt drive system
- Stainless door with safety interlock
- Super duty 1” thick steel base plate
- Heavy duty roller bearings
- Swivel stand mounting on feeder / conditioner
- Drylac Powder Coating compliant to FDA 21 CFR 175.300
- Forklift slots for easy mobility
- Easy-slide motor adjustment
- Operator’s manual included
- Designed, built, & supported in the USA
- CME’s Signature 1-Year Manufacturer’s Warranty
- Change Parts Required: New Die
- Change Parts Required: New Roller Assembly Set
- Stainless Conditioner
- Stainless Variable Pitch Feeder
- Stainless Heavy Duty Force Feeder
- Magnet (requires purchase of a Force Feeder)
- Food Grade Grease

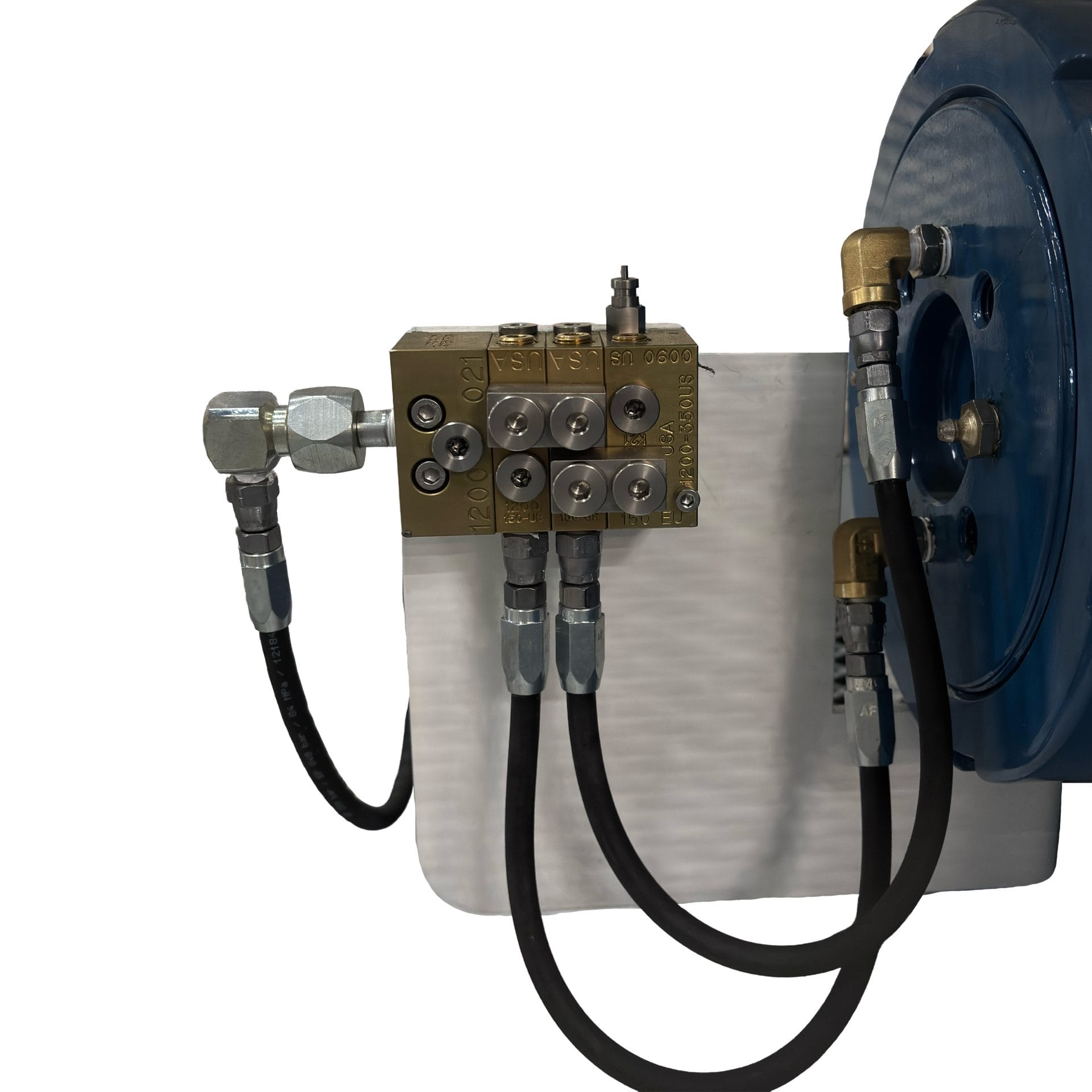

- Auto Lubrication System
- Isolation Pad Set
- Safety Control Panel
- Alfalfa
- Corn
- General Feed
- Hemp/Cannabis
- Oats
- Plastics
- Poultry Litter
- Soybean Meal
- Wheat
- Wood
- Wood Grill Pellets
- Fertilizer
- Carbon
