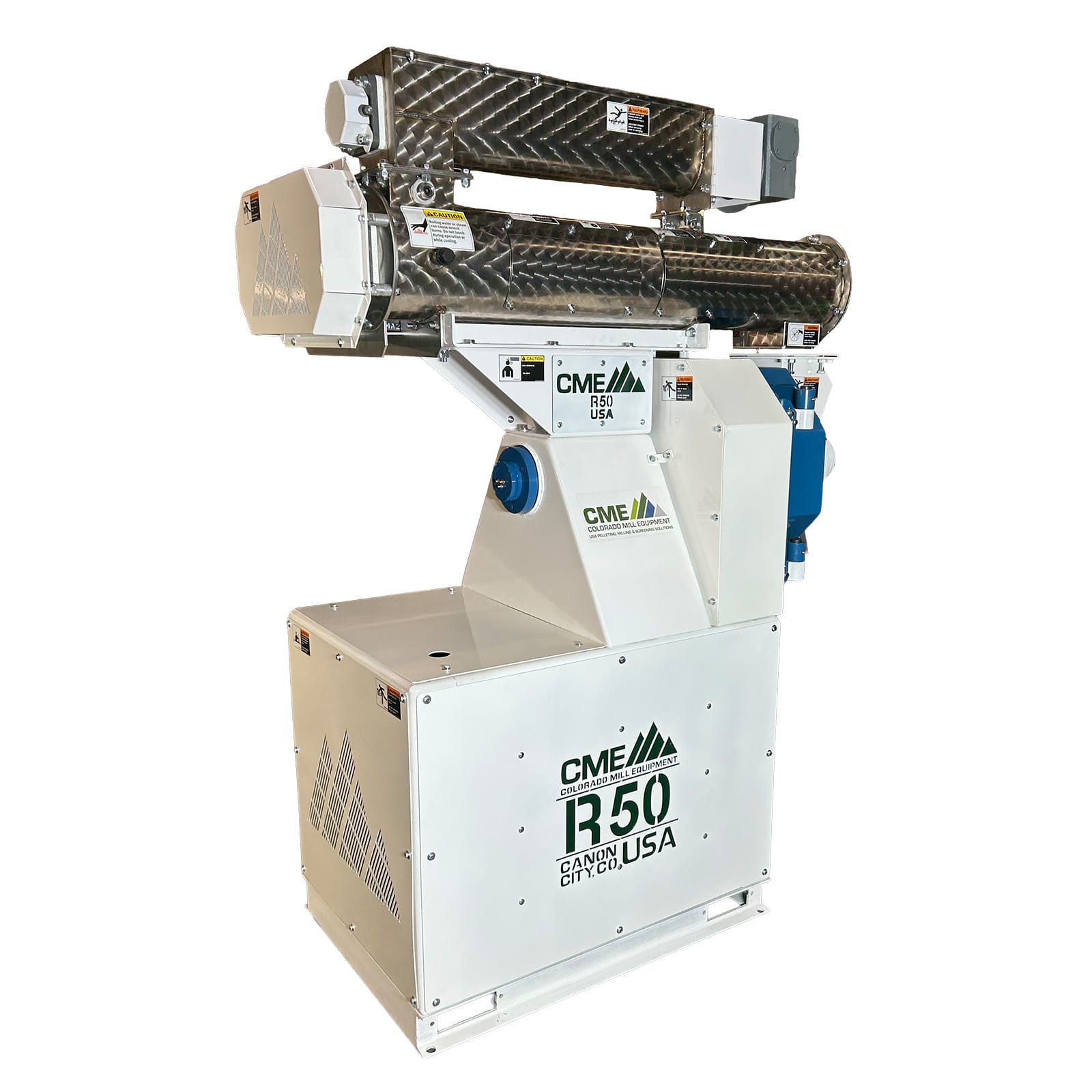

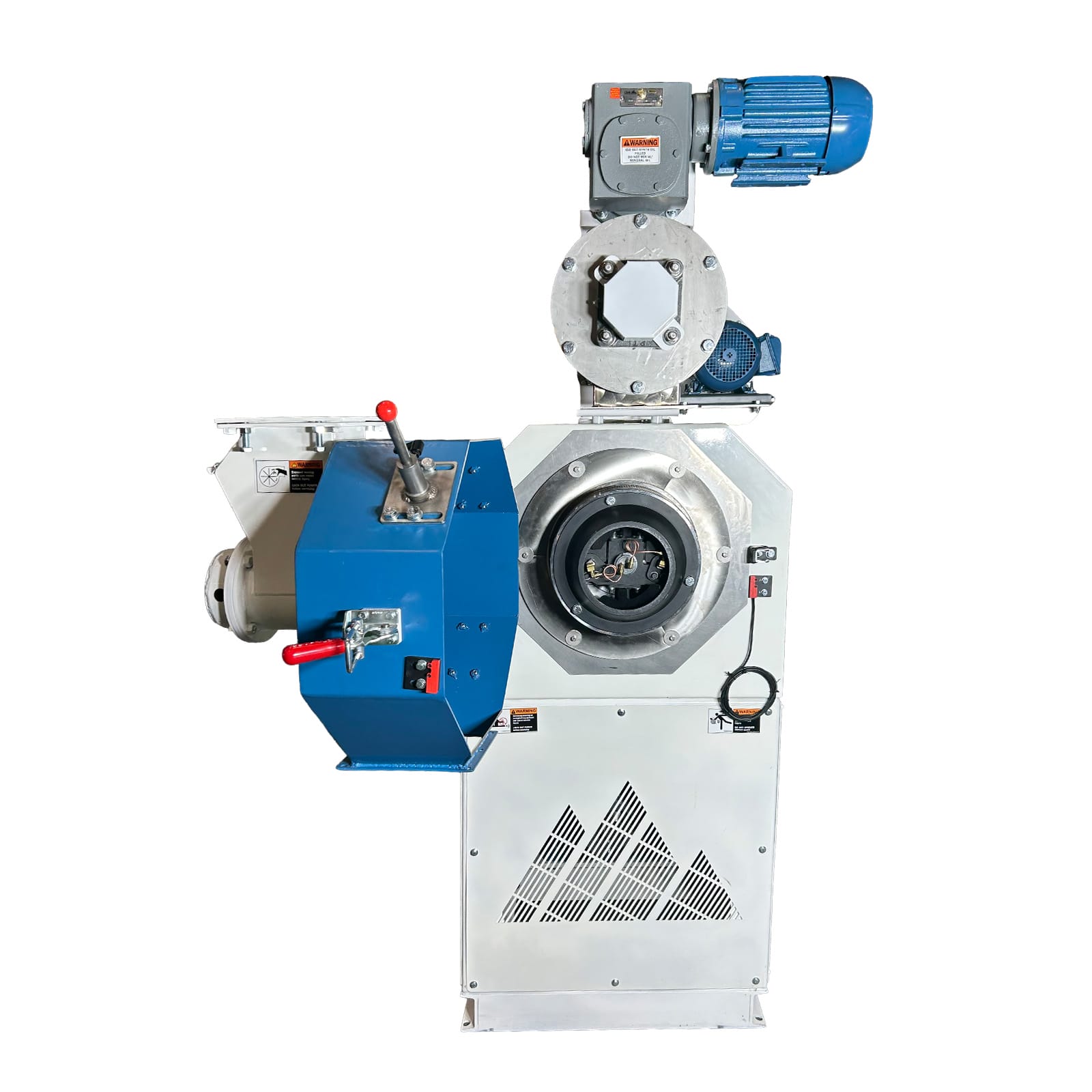

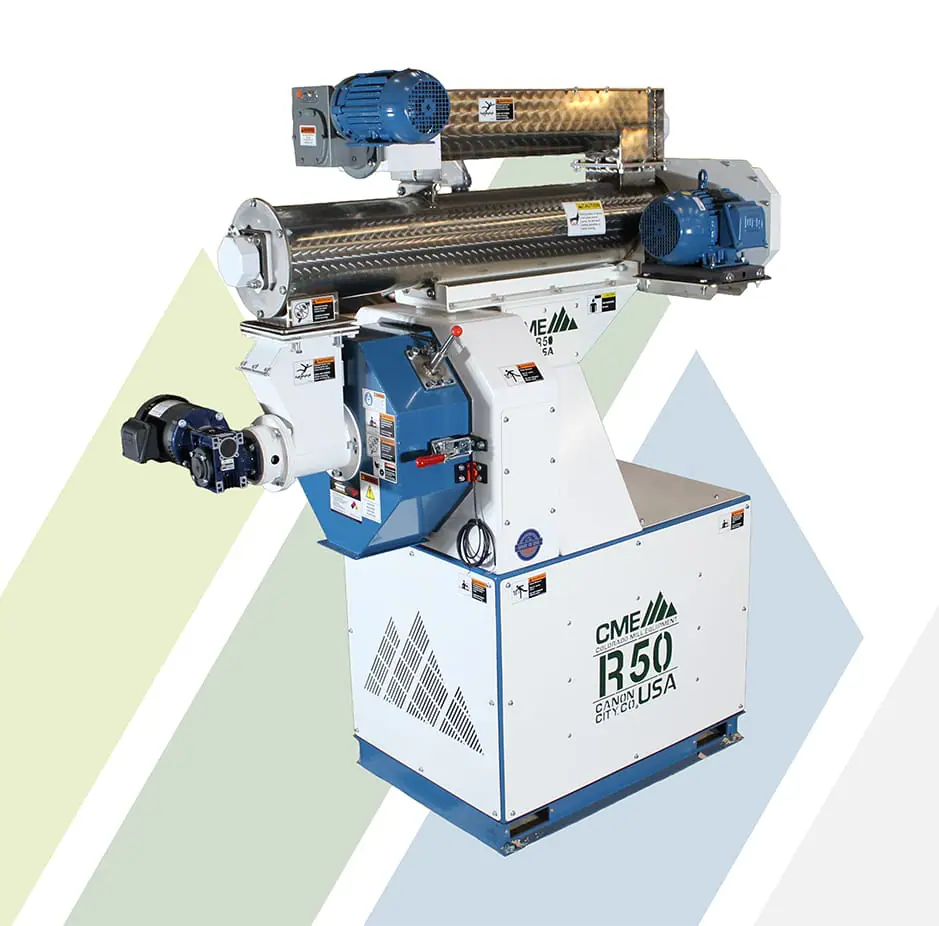

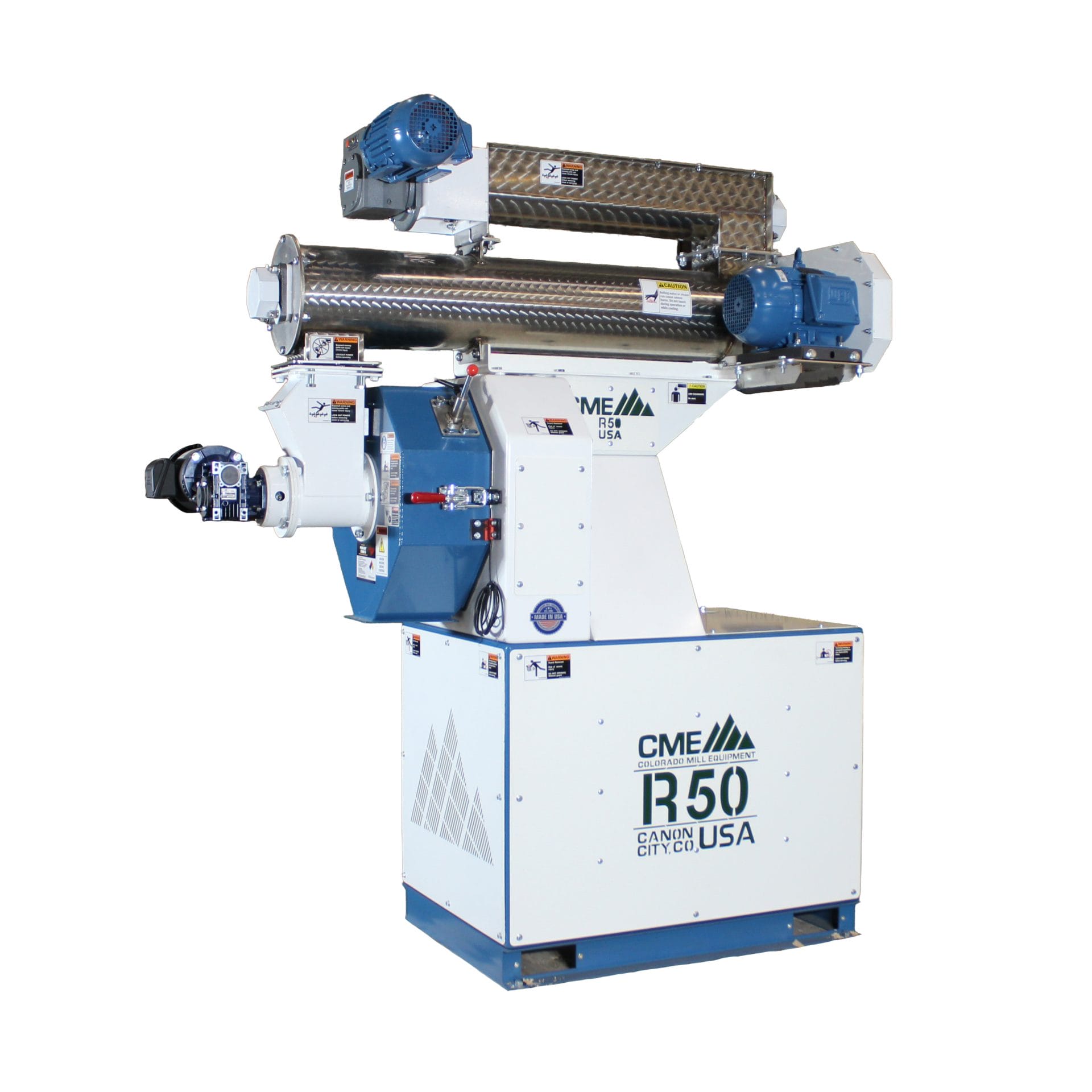

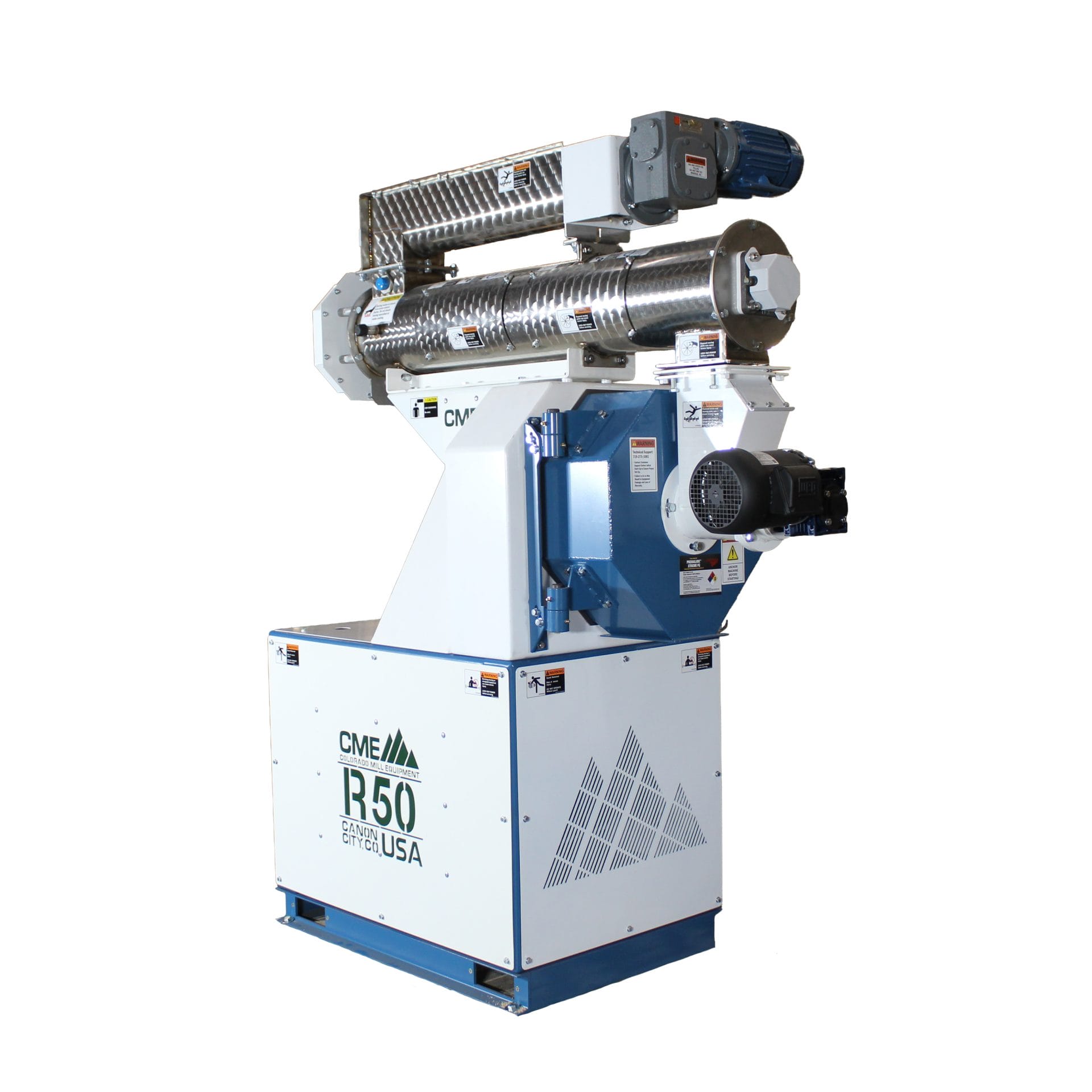

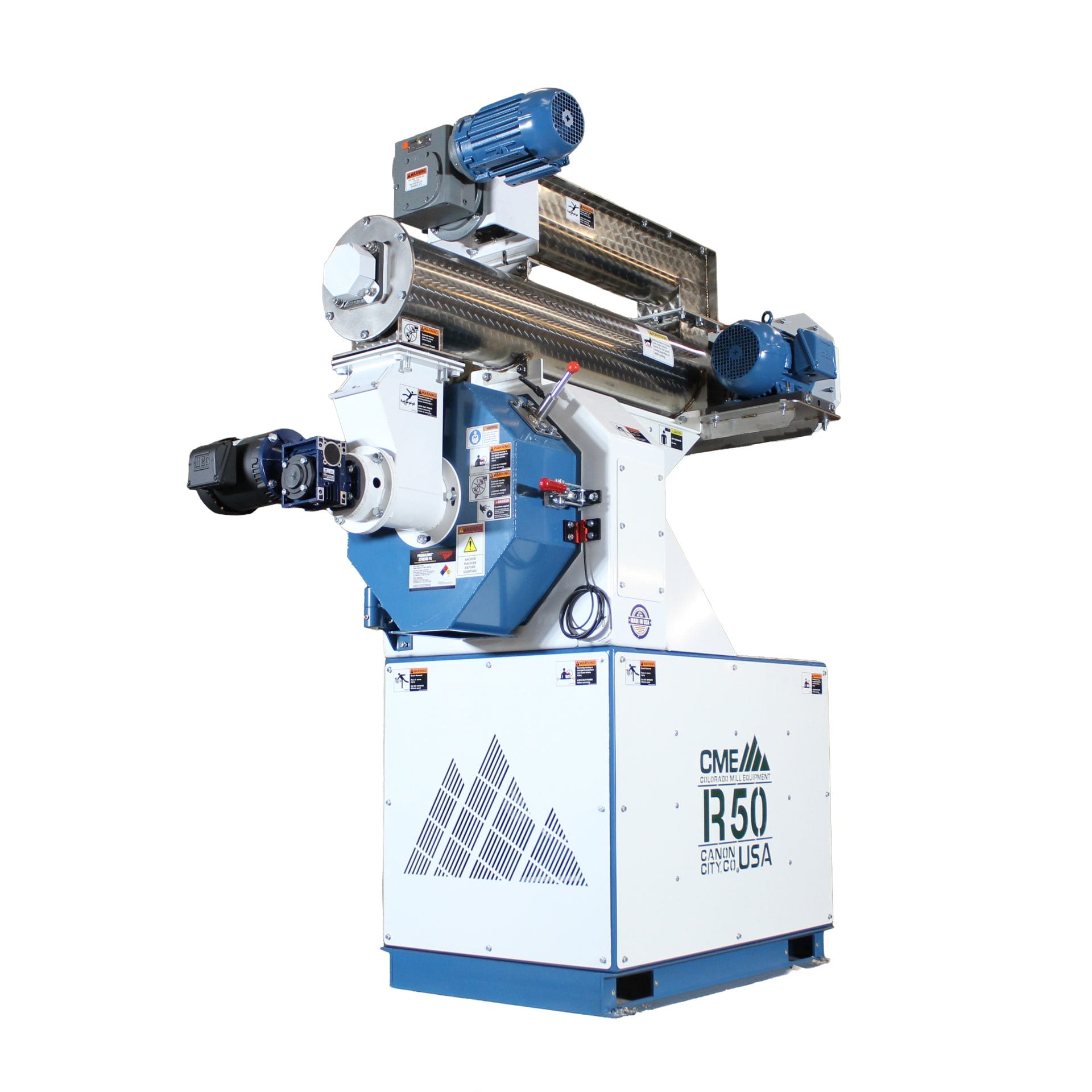

R50 Pellet Mill
50 HP Motor
STARTING AT $46,900.00
Reliable Ring Die Pelleting for Pilot to Production Applications
The R50 Pellet Mill is an economical pilot-to-production scale ring die pellet mill designed with a simple and reliable belt-drive system. Capable of producing 500 to 2,500 lbs per hour depending on the material, the R50 provides dependable performance for a wide range of pelletizing applications.
The unit is equipped with a 50 HP drive and includes a stainless steel door, gravity feed chute, one set of rolls, and one adjustable cut-off knife. Optional configurations for the R50 include a stainless steel feeder, stainless steel conditioner with adjustable paddles, force feeder, and additional die options.
The R50 supports a wide range of pelleting applications including biomass, feed, fertilizer, and alfalfa, along with various agricultural byproducts, meals, organic materials, and other pelletizable materials depending on configuration and die selection.
The R50 is part of CME’s complete line of pelletizing equipment designed to support a wide range of pellet production systems.
* Options shown in images and/or videos are sold separately and not included in price.
Motor
50 HP
Capacity/HR
500-2,500 LBS
Die Inner Dia.
10″ Ring
Dimensions
75” L x 35” W x 85” H
Weight
3000 LBS
- New Dies Available: 1/8”, 5/32″, 3/16″, 1/4″, 3/8″ 1/2”
- Custom Die Sizes Available Upon Request
- Simple and Reliable Belt Drive System
- Mounted on Heavy Duty Welded Steel Frame
- Safety Stickers With Icons
- Safety Guards Over All Pulleys and Bearings

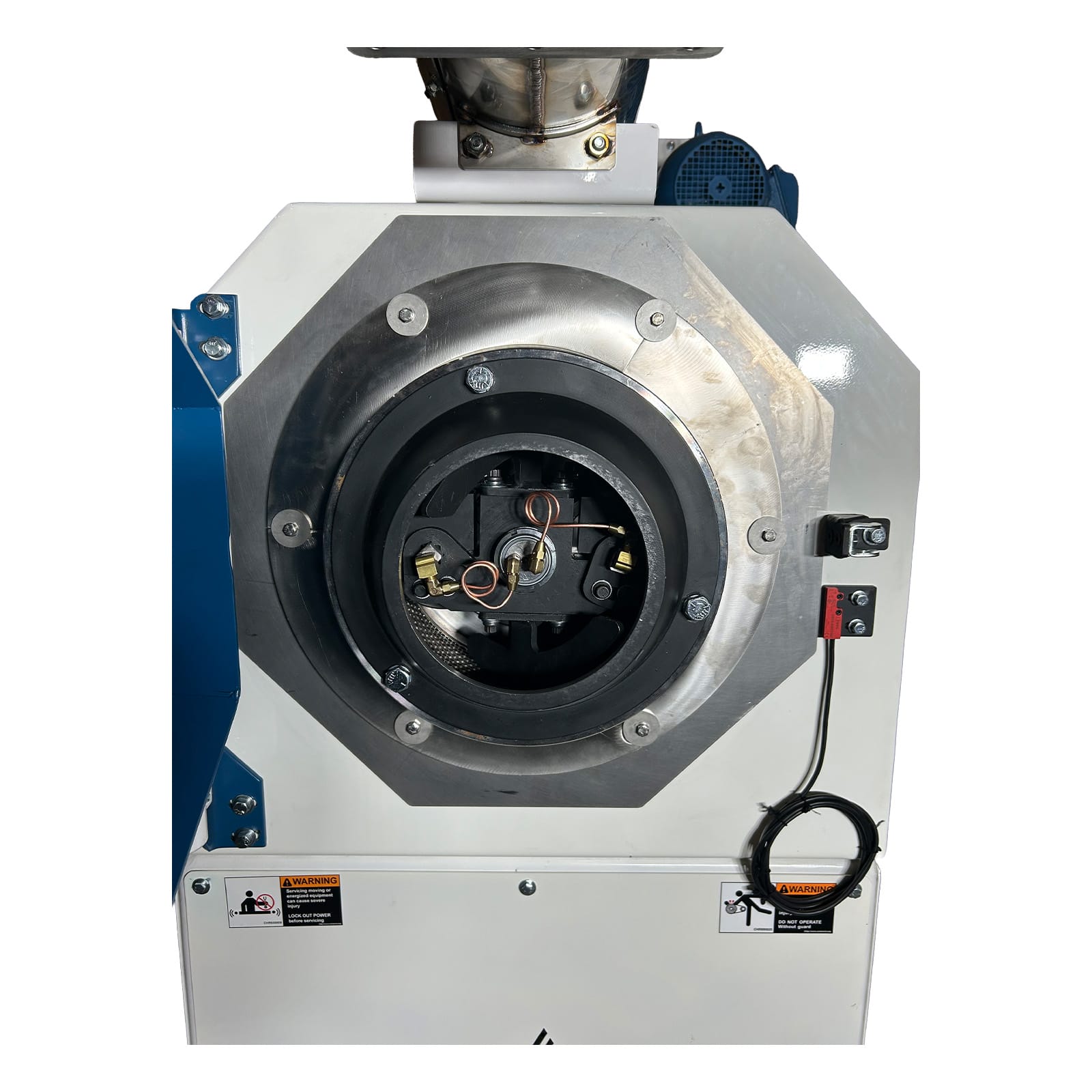

- Stainless Steel Hinged Door With Safety Interlock
- Easy-adjust Knife Posts to Change Pellet Length
- Feed-chute With Hinged Door For Lab Runs & Clean Out
- Over 1,000 Pellet Mills Sold Worldwide
- CME’s Signature 1-Year Manufacturer’s Warranty
- Change Parts Required: New Die
- Change Parts Required: Roller Assembly Set
- Stainless Conditioner
- Stainless Feeder with Inverter Duty Motor
- Force Feeder
- Isolation Pad Set
- Nitrogen Ports
- Food Grade Grease
- Safety Control Panel
- Alfalfa
- Corn
- General Feed
- Hemp/Cannabis
- Oats
- Plastics
- Poultry Litter
- Soybean Meal
- Wheat
- Fertilizer
- Carbon
CME Is Your Best Choice
America First Manufacturing
Colorado Mill Equipment is an innovative company dedicated to providing high-quality, Made in USA pelletizing, milling, and bagging equipment to meet the needs of a global industry. We are equipped to run tests on a wide variety of products, refurbish equipment, supply spare parts, and ship machinery internationally.
Parts are made and stocked in the USA, at our own facility
We offer a “test your material before you buy” option
In-house training included with every pellet mill purchase
Lifetime technical, application, and engineering support
