C12 Pellet Cooler
Equipped With a 2HP Drive
Call for Pricing
Efficient Pellet Cooling for Mid-Scale Production
The C12 Pellet Cooler is commonly used to cool pellets at production rates of 6 to 12 tons per hour, depending on pellet size, density, temperature, and material composition. The unit includes a 1900 x 1900 mm cooling grid with an estimated dwell time of 10 to 15 minutes, allowing pellets to stabilize before downstream handling or packaging.

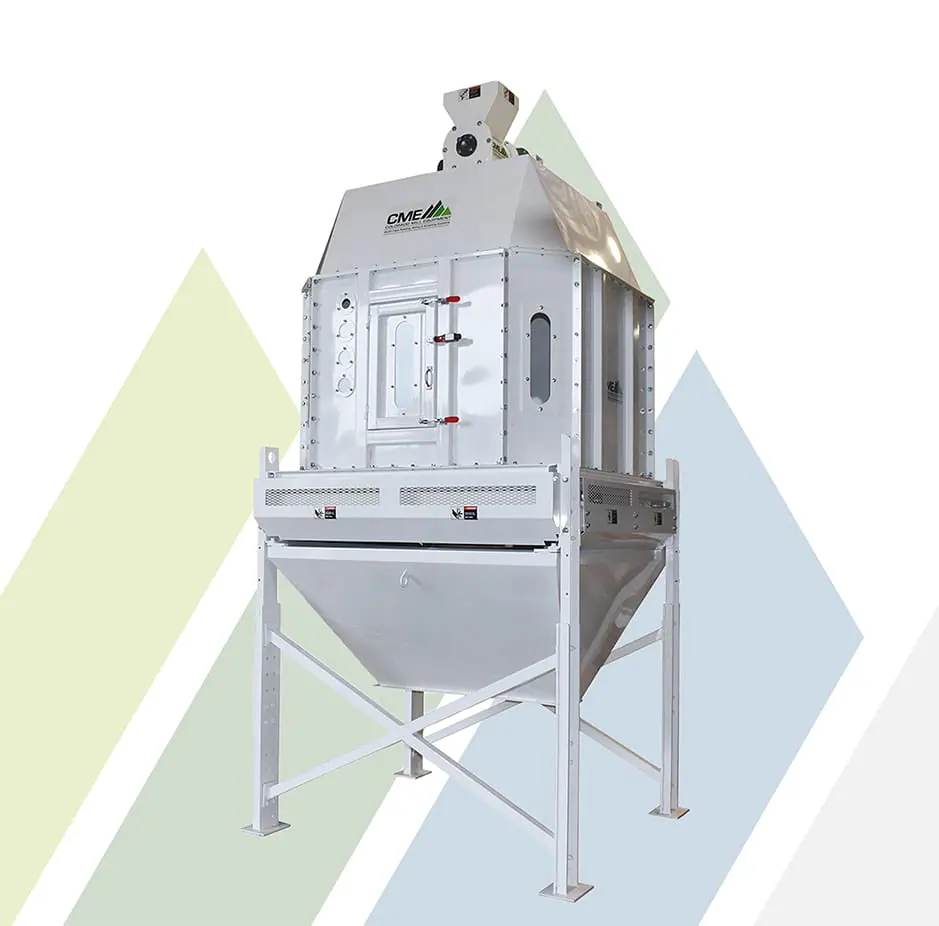

The unit shown features the optional top-installed rotary airlock and discharge bin for controlled material flow and system integration. The C12 works alongside CME’s pelletizing equipment to support efficient pellet production and processing systems.
Common applications include cooling pellets, plastics, roasted grains, cubes, and expeller-pressed meals.
* Options shown in images and/or videos are sold separately and not included in price.
Max Capacity
107 Cubic Ft
Air System Blower
CFM 4900 CFM at 12” static pressure
Cooler Weight
4815 LBS (including top airlock valve)
Cyclone
Weight
900 LBS
Cooler Infeed Height
166.6″ MN – 202.5″ MAX
Cooler Discharge Height
17.6″ – 53.6″
Cyclone Airlock Discharge
37.16″
- Variable swing discharge grid
- Heavy-duty construction
- Easy maintenance
- Equipped with a 2 HP Cleveland drive motor
- Heavy-duty Cleveland gearbox
- Ultra diffusion spreader with 4-way adjustment
- Triple grid system for minimal product breakage
- Ultra compact footprint
- Drylac Powder Coating compliant to FDA 21 CFR 175.300
- Manway Door
- Safety interlock
- Designed, built, & supported in the USA
- Over 300 coolers sold worldwide
- CME’s Signature 1-Year Manufacturer’s Warranty
- Required component (select one): Discharge Chute for use with Screener or Gravity Discharge Chute
- SCR46 Screener
- Top Airlock
- Cyclone Airlock
- Cyclone Blower Assembly
- Safety Control Panel
- Cubing Grid
- Alfalfa
- Corn
- General Feed
- Hemp/Cannabis
- Oats
- Poultry Litter
- Soybean Meal
- Wheat
- Fertilizer
- Carbon
- Wood
- Wood Grill Pellets
- Plastics
