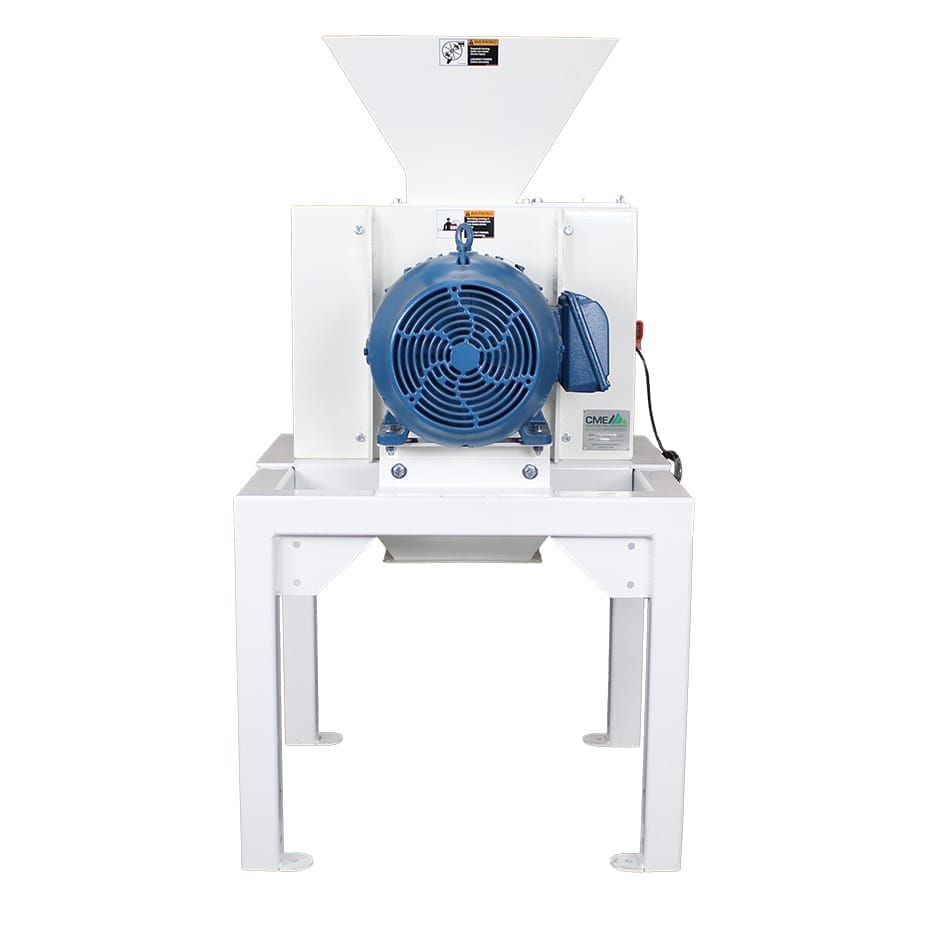

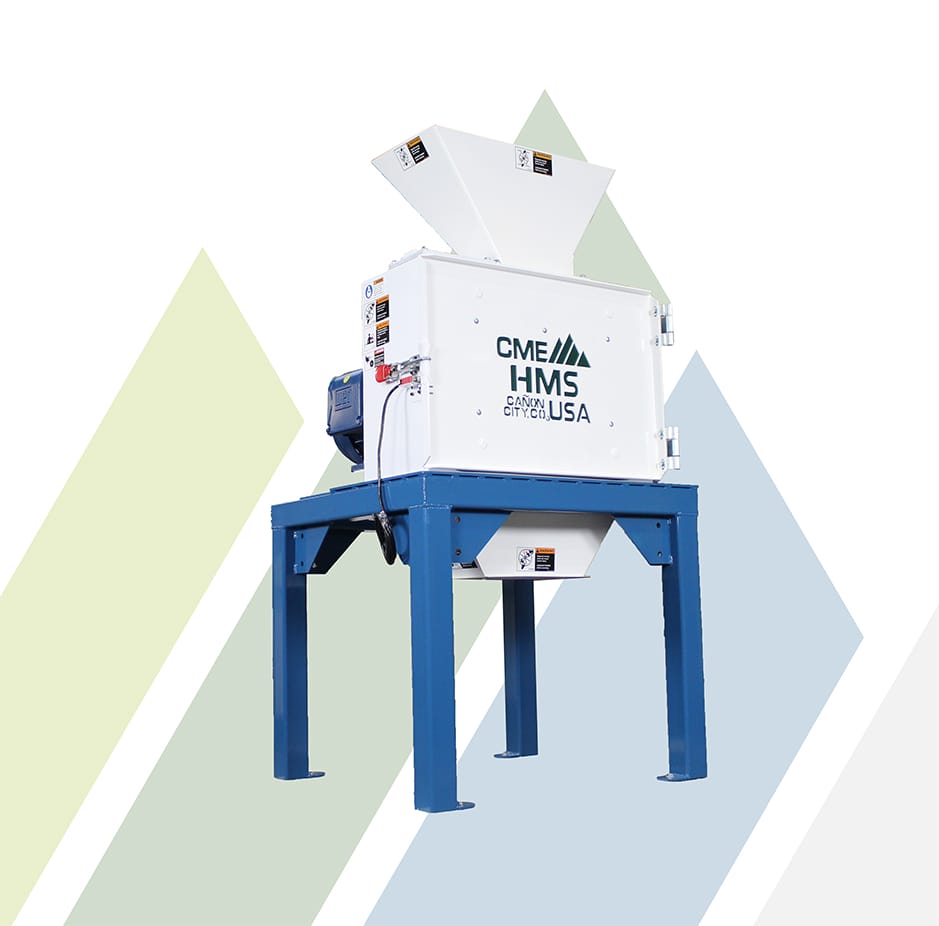

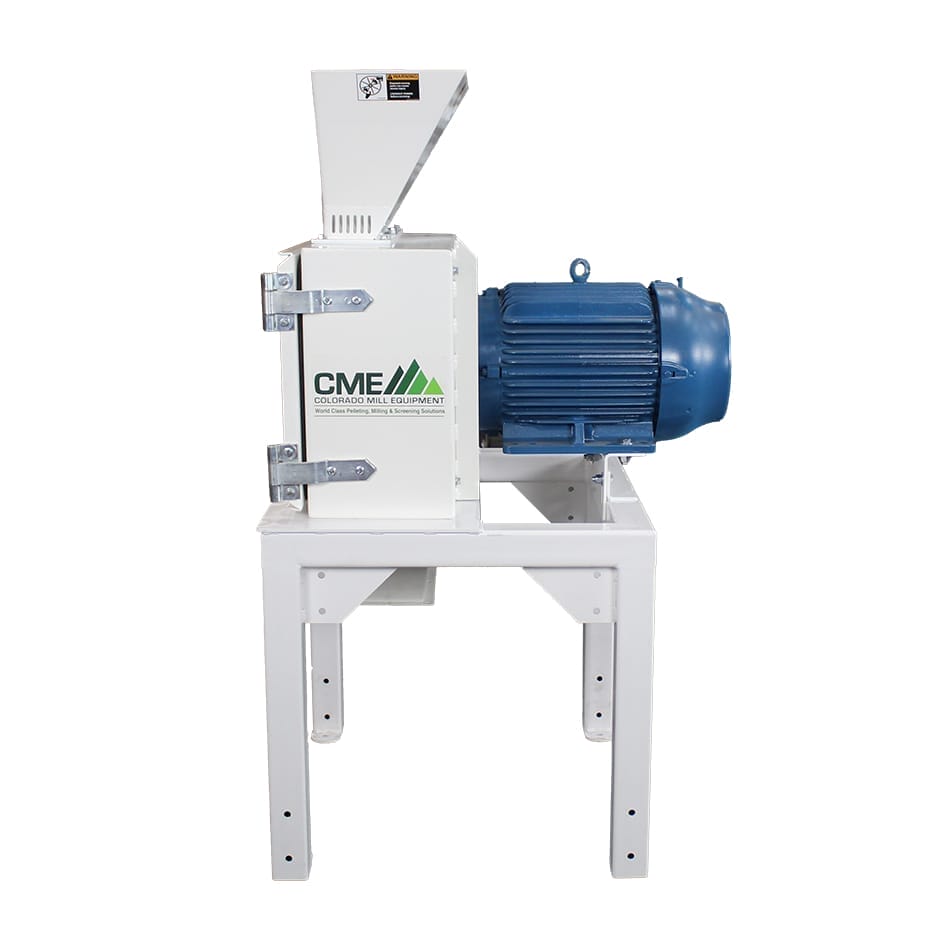

HMS-HD Base Hammer Mill
3, 10, or 30–40 HP motors
Starting at $9,900
Precision Grinding with Power Options from 3 to 40 HP
HMS-HD Base Hammer Mills are built in the USA for durability and precision. Available with 3, 10, or 30–40 HP motors, these machines provide gravity discharge grinding for a wide range of materials.
Each model is designed for versatility, operating as a lump breaker, standard hammer mill, or fine grinder. With the ability to achieve particle sizes down to 200 microns, the HMS-HD Base Hammer Mill delivers consistent results for both wet and dry applications in feed, biomass, recycling, and food processing industries.
Also available in stainless steel construction for hygienic and food-grade processing applications.
Motor
3-40 HP
Capacity/HR
Up to 30,000 lbs/hr
*call for capacity on your application
Aspiration Req.
500 CFM
Screen Size
.020″ to 1″
Screen Area
368″²
Hammers:
15-30
Dimensions
48″ L x 48″ W x 62″ H
Weight
750-1500 LBS
- Required Change Parts: Hammers & Screens
- Magnet*
- Vibration Switch*
- Safety Motor Starter*
- Isolation Pad Set*
- Air System with Filter
- Single Phase Motor (3 & 10 HP only)
- XP Motors
- Extension Legs
*Recommended for optimal performance and safety
- Fine grinding capability down to 200 microns

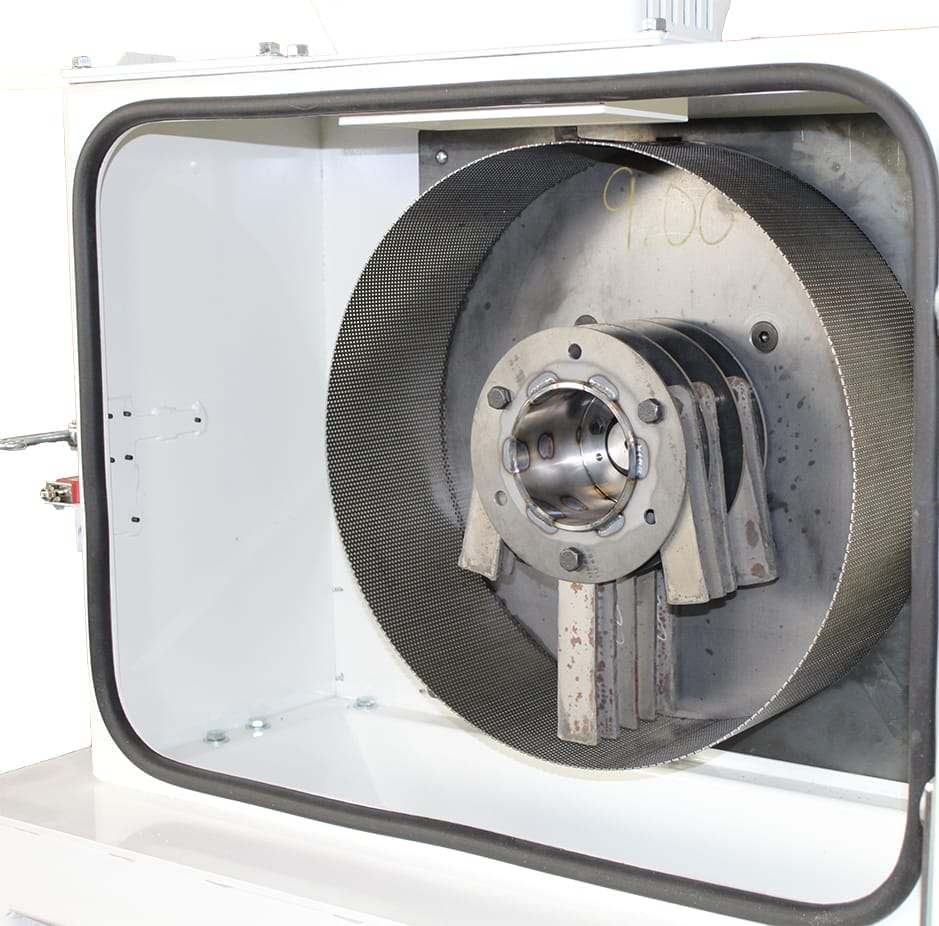

- True full-circle screen design for maximum efficiency
- Quick-change single screen design (swap in 30 seconds)

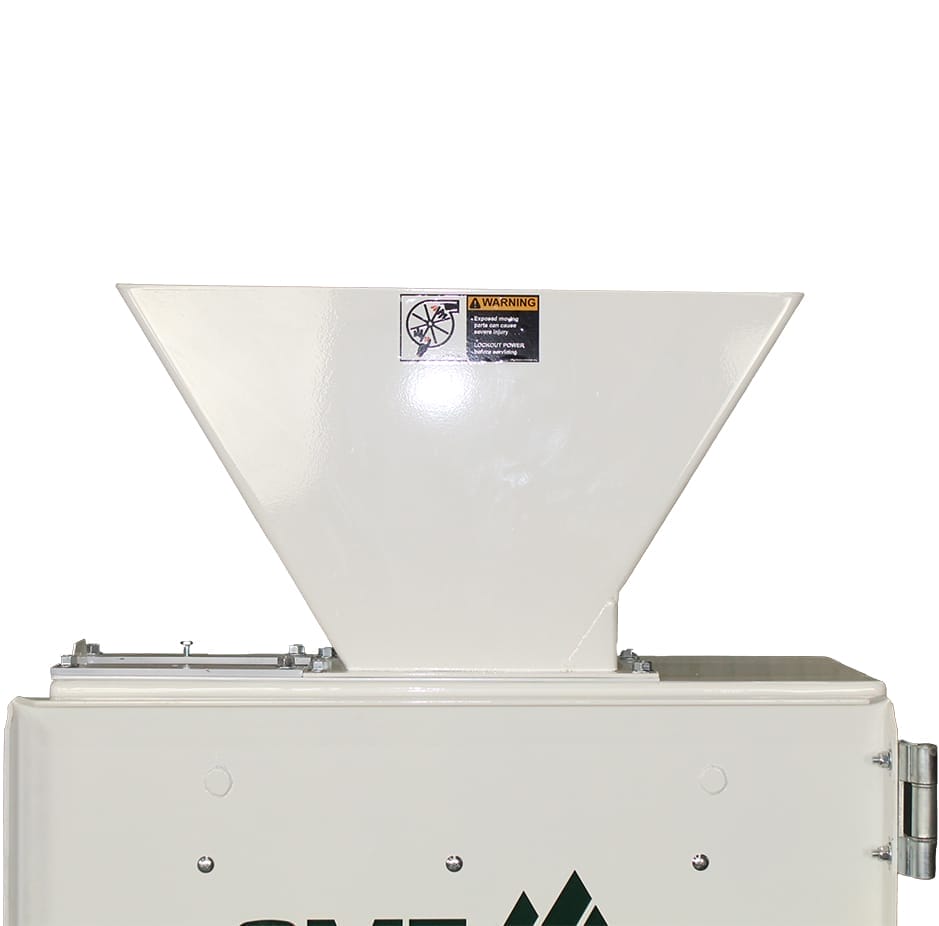

- One cubic foot hopper with slide gate

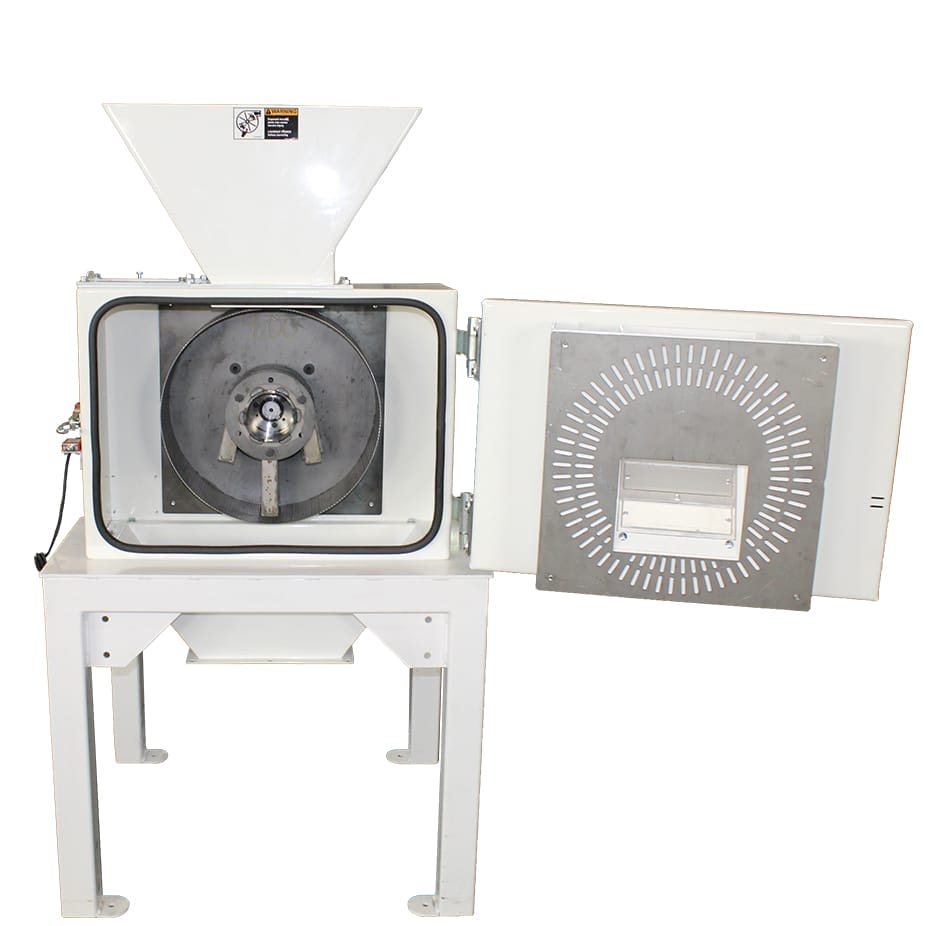

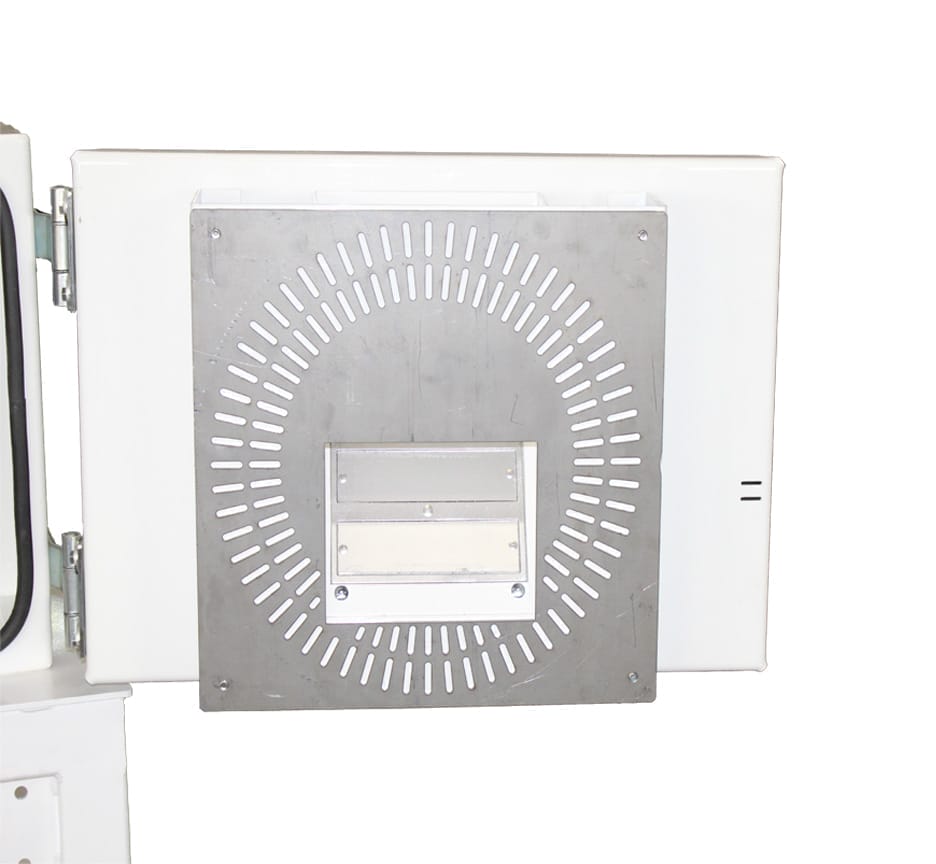

- Hinged door with easy access to hammers & screen
- Uses our super duty carbide hammers
- Equipped with a TEFC motor
- Built-in 300 CFM safety vent

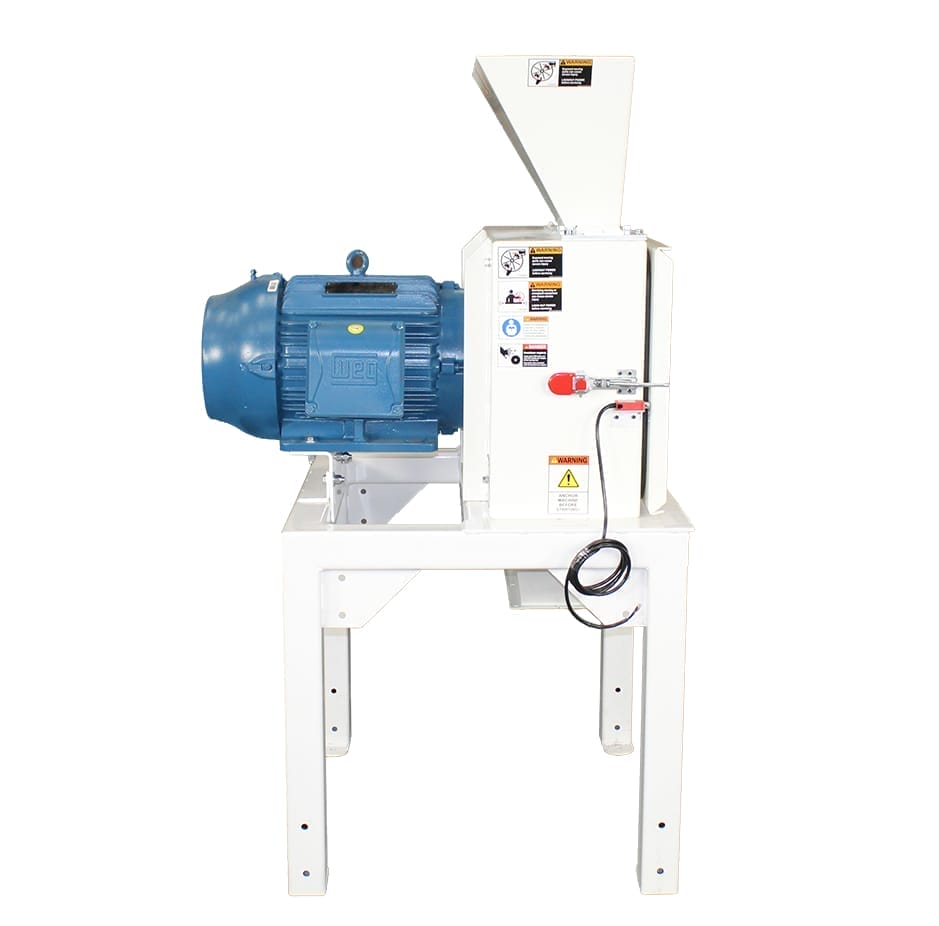

- Auto shut-off safety interlock
- Safety door latch with lock
- Safety stickers with icons
- Durable Drylac powder coating, compliant with FDA 21 CFR 175.300
- Alfalfa
- Corn
- General Feed
- Hemp/Cannabis
- Oats
- Poultry Litter
- Soybean Meal
- Wheat
- Fertilizer
- Carbon
- Recyclables
- Wood
- Wood Grill Pellets
Upgrade Your Hammer Mill Setup
Pair with the HMS Air System
Enhance efficiency & safety with CME’s Air System add-on.

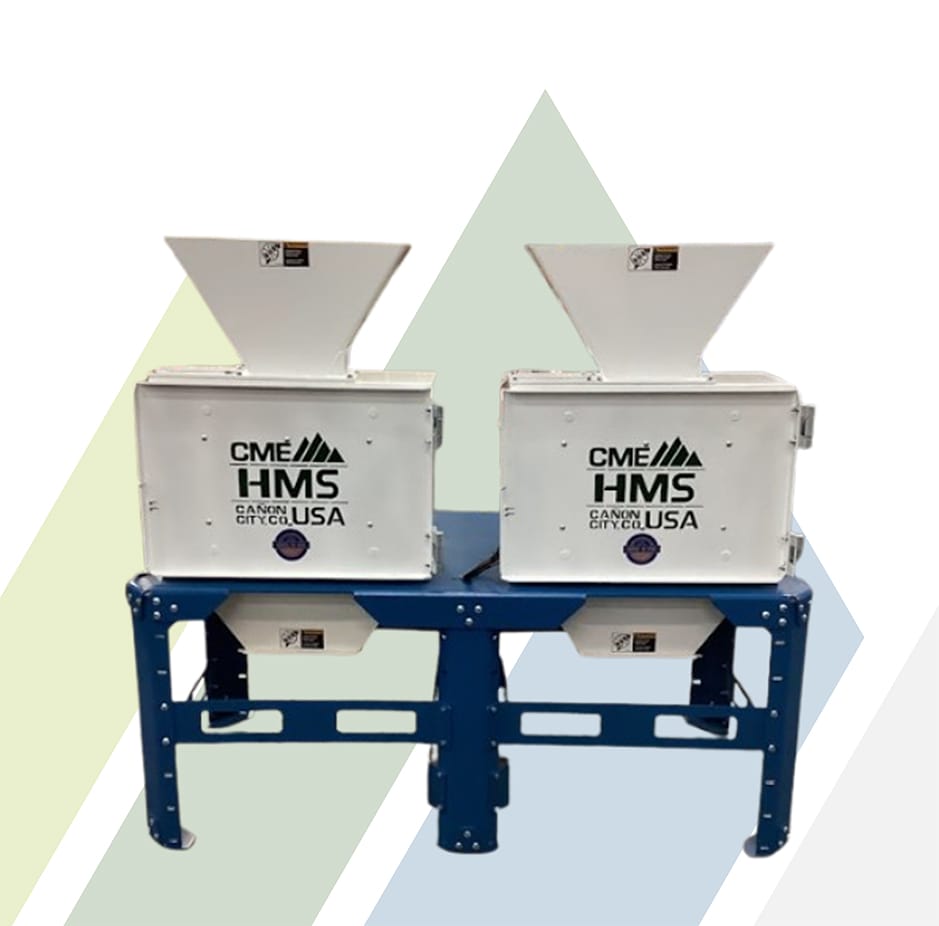

Double up with a Dual Hammer Mill Stand
Increase capacity and versatility with CME’s Dual Stand.
* Options shown in images and/or videos are sold separately and not included in price.
